[Overview]
■ Overview ■

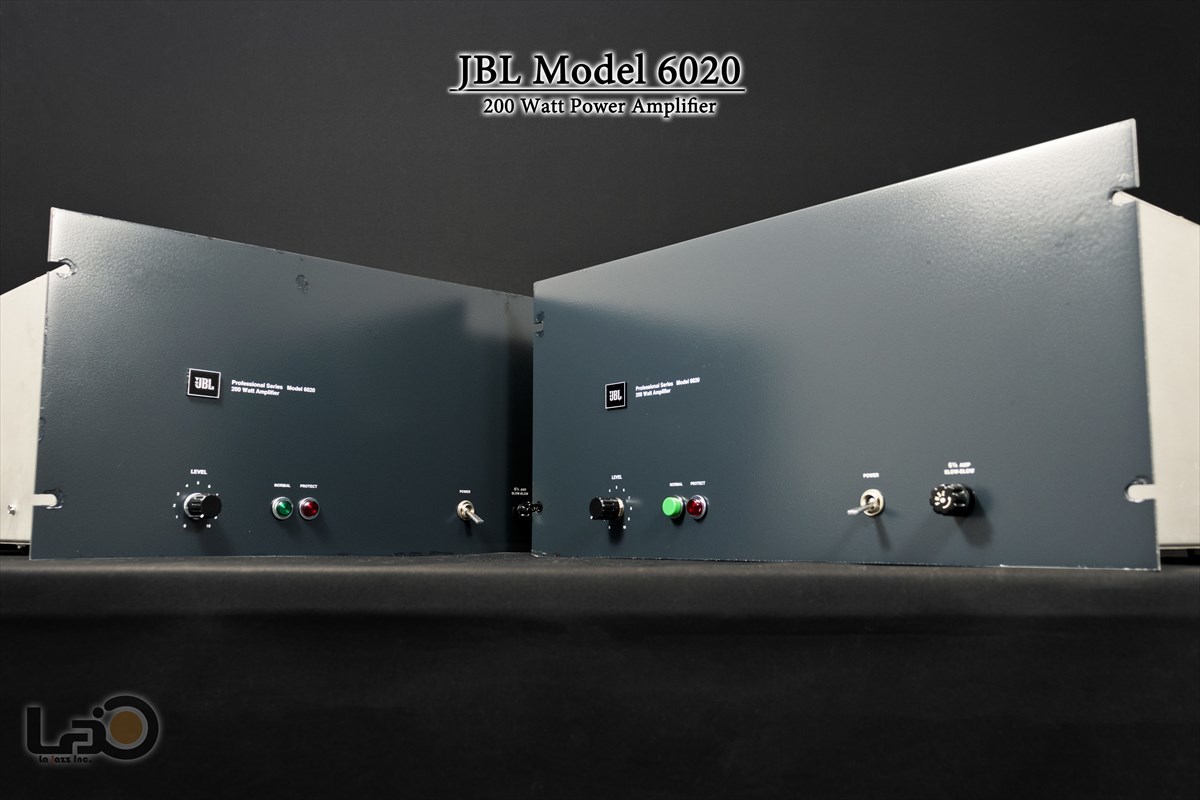

This item is the JBL MODEL 6020 200 Watt Power Amplifier, a high-power amplifier released by JBL.
Drawing extensively on the knowledge and experience JBL had accumulated through the development of vacuum-tube power amplifiers, the MODEL 6020 represents one of the company’s outstanding transistor-based power amplifier designs.
With its impressive 200W + 200W output, it provides a wide frequency response extending into the upper harmonic range while maintaining low distortion and powerful, dynamic sound reproduction.
It would not be an exaggeration to call this one of the finest amplifiers in JBL’s Professional Series. Historically, it is also an important model, as its design served as the foundation for the later 60XX Series amplifiers.
Thanks to its advanced engineering and generous headroom, the amplifier delivers effortless, spacious, and powerful sound reproduction.
Despite its vintage age, the unit remains in exceptionally clean cosmetic condition, as can be seen in the photographs.
The amplifier will be carefully and securely packed for shipping.
Operation guaranteed.
This unit has been fully restored by a professional audio technician.
Capacitors, resistors, vacuum tubes, contacts, connections, and other components have all been thoroughly inspected and have passed a complete operational check.
[Specifications]
Type: Power Amplifier
Output: 200W RMS
(4Ω Direct / 8Ω, 16Ω, 25Ω Transformer)
Input Sensitivity: 0.7V
Total Harmonic Distortion: 0.5% or less
Intermodulation Distortion:
2% or less at 200W RMS
1% or less at 10W RMS
Signal-to-Noise Ratio: 90dB (up to 200W)
High-Pass Filter: 250Hz (6dB/oct.)
Dimensions: W483 × H222 × D254mm
Serial Numbers: 1251827, 1251842
Weight: 25kg
